thin section bearings

thin section bearings with seals or shields are designed to accommodate radial loads and some axial loads in either direction. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. The bearings are available with metric and inch boundary dimensions. Accommodate radial and some axial loads in both directions Integral sealing prolongs bearing service life Thin cross section Lightweight Low friction High stiffness High running accuracy

Keywords:

Thin section bearings

Category:

Thin section bearings

+8615610177274

northseiko@bbkbearing.com

E-mail

Related Products

Message

Product Details

thin section bearings with seals or shields are designed to accommodate radial loads and some axial loads in either direction. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. The bearings are available with metric and inch boundary dimensions.
Accommodate radial and some axial loads in both directions
Integral sealing prolongs bearing service life
Thin cross section
Lightweight
Low friction
High stiffness
High running accuracy

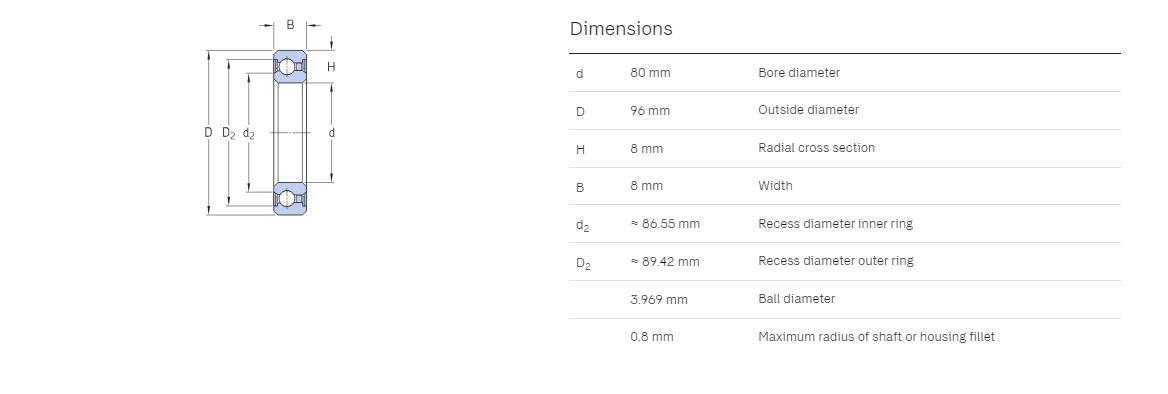

Bearing NO.	d (mm)	D (mm)	H (mm)	B (mm)
J02508XP0	25	41	8	8.001
J05008XP0	50	66	8	8
J06008XP0	60	76	8	8
J07008XP0	70	86	8	8.001
J08008CP0	80	96	8	8
J08008XP0	80	96	8	8.001
J09008CP0	90	106	8	8
J10008XP0	100	116	8	8
J13008XP0	130	146	8	8.001
JA020CP0	50.8	63.5	6.35	6.35
JA020XP0	50.8	63.5	6.35	6.35
JA025CP0	63.5	76.2	6.35	6.35
JA025XPD	63.5	76.2	6.35	6.35
JA030CP0	70.2	88.9	6.35	6.35
JA030XPO	76.2	88.9	6.35	6.35
JA035CP0	88.9	101.6	6.35	6.35
JA035XP0	88.9	101.6	6.35	6.35
JA040CPO	101.6	114.3	6.35	6.35
JA040XP0	101.6	114.3	6.35	6.35
JA042CP0	107.95	120.65	6.35	6.35
JA042XP0	107.95	120.65	6.35	6.35
JA045CP0	114.3	127	6.35	6.35
JA045XPD	114.3	127	6.35	6.35
JA047CPO	120.65	133.35	6.35	6.35
JA047XP0	120.65	133.35	6.35	6.35
JA050CP0	127	139.7	6.35	6.35
JA050XP0	127	139.7	6.35	6.35
JA055CP0	1397	152.4	6.35	6.35
JA055XP0	139.7	152.4	0.35	6.35
JA060CP0	152.4	165.1	6.35	6.35
JA060XP0	152.4	165.1	6.35	6.35
JA065CP0	165.1	177.8	6.35	6.35
JA065XP0	1651	177.8	6.35	6.35
JA070CP0	177.8	190.5	6.35	6.35
JA070XP0	177.8	190.5	6.35	6.35
JA075CP0	190.5	203.2	6.35	6.35
JA075XP0	190.5	203.2	6.35	6.35
JB020CP0	50.8	66.675	7.938	7.938
JB020XPO	50.8	66.675	7.938	7.938
JB025CP0	63.5	79.375	7.938	7.938
JB025XP0	63.5	79.375	7.938	7.938
JB030CP0	76.2	92.075	7.938	7.938
JB030XPD	76.2	92.075	7.938	7.938
JB035CP0	88.9	104775	7.938	7.938
JB035XP0	88.9	104.775	7.938	7.938
JB040CP0	101.6	117.475	7.938	7.938
JB040XPD	101.6	117.475	7.938	7.938
JB042CP0	107.95	123.825	7.938	7.938
JB042XP0	107.95	123.825	7.938	7.938
JB045CP0	114.3	130175	7.938	7.938
JB045XP0	114.3	130.175	7.938	7.938
.JB047CP0	120.65	136.525	7.938	7.938
JB047XP0	120.65	136.525	7.938	7.938
JB050CP0	127	142.875	7.938	7.938
JB050XP0	127	142.875	7.938	7.938
JB055CPD	139.7	155.575	7.938	7.938
JB055XPD	1397	155.575	7.938	7.938
JB060CP0	152.4	168.275	7.938	7.938
JB060XP0	152.4	168.275	7.938	7.938
JB065CP0	1651	180.975	7.938	7.938
