LMF&LMK&LMH Flange series

FNL cast flanged, They enable the full service life potential of the incorporated bearings to be exploited with less need for maintenance. FNL housings are supplied with a cover either for shaft ends (suffix A) or for though shafts (suffix B). Smaller sizes (up to and including size 13) have a triangular flange, larger sizes have a square flange.

Keywords:

Pillow Block Bearings

Category:

Pillow Block Bearings

+8615610177274

northseiko@bbkbearing.com

E-mail

Related Products

Message

Product Details

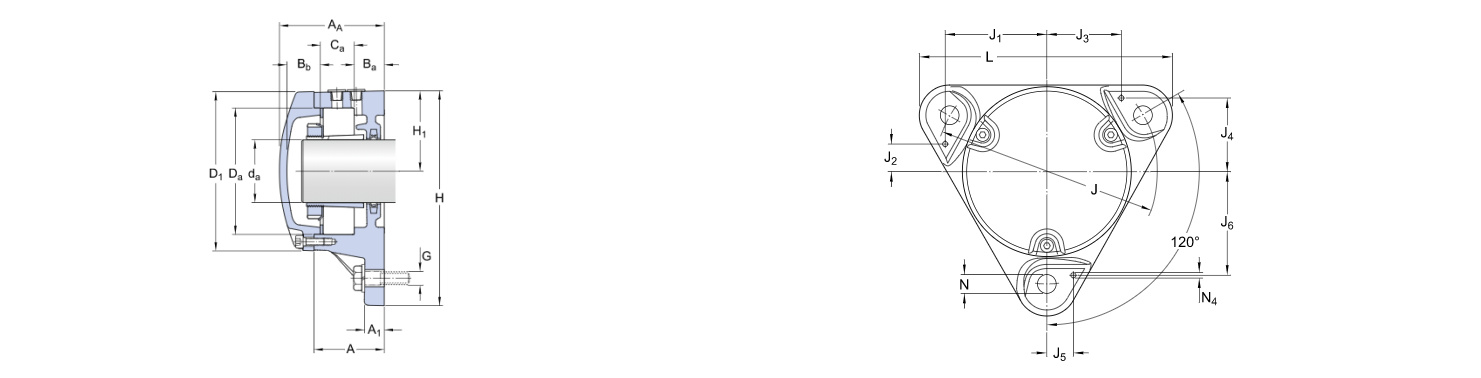

Bearing NO.	da mm	Aa, Ab mm	h mm	h1 mm	L mm
FNL 511 B + C 2211 K + H 311 E	50	82	172.5	65	192
FNL 512 A + 1212 K + H 212	55	85	189	72	210
FNL 512 A + 22212 K + H 312	55	85	189	72	210
FNL 512 A + C 2212 K + H 312 E	55	85	189	72	210
FNL 512 B + 1212 K + H 212	55	83	189	72	210
FNL 512 B + 2212 K + H 312	55	83	189	72	210
FNL 512 B + 22212 K + H 312	55	83	189	72	210
FNL 512 B + C 2212 K + H 312 E	55	83	189	72	210
FNL 506 A + C 2206 K + H 306 E	25	60.5	117	44	130
FNL 506 B + 1206 K + H 206	25	60	117	44	130
FNL 506 B + 2206 K + H 306	25	60	117	44	130
FNL 506 B + 22206 K + H 306	25	60	117	44	130
FNL 506 B + C 2206 K + H 306 E	25	60	117	44	130
FNL 507 A + 1207 K + H 207	30	64.5	130	48.5	145
FNL 510 A + 1210 K + H 210	45	77	160	60	179
FNL 510 A + 2210 K + H 310	45	77	160	60	179
FNL 510 A + 22210 K + H 310	45	77	160	60	179
FNL 510 A + C 2210 K + H 310 E	45	77	160	60	179
FNL 510 B + 1210 K + H 210	45	75	160	60	179
FNL 510 B + 2210 K + H 310	45	75	160	60	179
FNL 510 B + 22210 K + H 310	45	75	160	60	179
FNL 510 B + C 2210 K + H 310 E	45	75	160	60	179
FNL 507 A + 2207 K + H 307	30	64.5	130	48.5	145
FNL 507 A + 22207 K + H 307	30	64.5	130	48.5	145
FNL 507 A + C 2207 K + H 307 E	30	64.5	130	48.5	145
FNL 507 B + 1207 K + H 207	30	64	130	48.5	145
FNL 507 B + 2207 K + H 307	30	64	130	48.5	145
FNL 507 B + 22207 K + H 307	30	64	130	48.5	145
FNL 507 B + C 2207 K + H 307 E	30	64	130	48.5	145
FNL 508 A + 1208 K + H 208	35	67	143	54	160
FNL 505 A + 1205 K + H 205	20	57	100	38	110
FNL 505 A + 2205 K + H 305	20	57	100	38	110
FNL 505 A + 22205 K + H 305	20	57	100	38	110
FNL 505 B + 1205 K + H 205	20	56.5	100	38	110
FNL 505 B + 2205 K + H 305	20	56.5	100	38	110
FNL 505 B + 22205 K + H 305	20	56.5	100	38	110
FNL 506 A + 1206 K + H 206	25	60.5	117	44	130
FNL 506 A + 2206 K + H 306	25	60.5	117	44	130
FNL 506 A + 22206 K + H 306	25	60.5	117	44	130
FNL 508 A + 2208 K + H 308	35	67	143	54	160
FNL 508 A + 22208 K + H 308	35	67	143	54	160
FNL 508 A + C 2208 K + H 308 E	35	67	143	54	160
FNL 508 B + 1208 K + H 208	35	66	143	54	160
FNL 508 B + 2208 K + H 308	35	66	143	54	160
FNL 508 B + 22208 K + H 308	35	66	143	54	160
FNL 508 B + C 2208 K + H 308 E	35	66	143	54	160
FNL 509 A + 1209 K + H 209	40	72	160	60	179
FNL 509 A + 2209 K + H 309	40	72	160	60	179
FNL 509 A + 22209 K + H 309	40	72	160	60	179
FNL 509 A + C 2209 K + H 309 E	40	72	160	60	179
FNL 509 B + 1209 K + H 209	40	70.5	160	60	179
FNL 509 B + 2209 K + H 309	40	70.5	160	60	179
FNL 509 B + 22209 K + H 309	40	70.5	160	60	179
FNL 509 B + C 2209 K + H 309 E	40	70.5	160	60	179
FNL 511 A + 1211 K + H 211	50	84	172.5	65	192
FNL 511 A + 2211 K + H 311	50	84	172.5	65	192
FNL 511 A + 22211 K + H 311	50	84	172.5	65	192
FNL 511 A + C 2211 K + H 311 E	50	84	172.5	65	192
FNL 511 B + 1211 K + H 211	50	82	172.5	65	192
FNL 511 B + 2211 K + H 311	50	82	172.5	65	192
FNL 511 B + 22211 K + H 311	50	82	172.5	65	192
FNL 513 A + 1213 K + H 213	60	88	203	78	225
FNL 513 A + 2213 K + H 313	60	88	203	78	225
FNL 513 A + 22213 K + H 313	60	88	203	78	225
FNL 513 A + C 2213 K + H 313 E	60	88	203	78	225
FNL 513 B + 1213 K + H 213	60	86	203	78	225
FNL 513 B + 2213 K + H 313	60	86	203	78	225
FNL 513 B + 22213 K + H 313	60	86	203	78	225
FNL 513 B + C 2213 K + H 313 E	60	86	203	78	225
FNL 515 A + 1215 K + H 215	65	106	190	95	190
FNL 515 A + 2215 K + H 315	65	106	190	95	190
FNL 515 A + 22215 K + H 315	65	106	190	95	190
FNL 515 A + C 2215 K + H 315 E	65	106	190	95	190
FNL 515 B + 1215 K + H 215	65	104	190	95	190
FNL 515 B + 2215 K + H 315	65	104	190	95	190
FNL 515 B + 22215 K + H 315	65	104	190	95	190
FNL 515 B + C 2215 K + H 315 E	65	104	190	95	190
FNL 516 A + 1216 K + H 216	70	113	196	98	196
FNL 516 A + 2216 K + H 316	70	113	196	98	196
FNL 516 A + 22216 K + H 316	70	113	196	98	196
FNL 516 A + C 2216 K + H 316 E	70	113	196	98	196
FNL 516 B + 1216 K + H 216	70	110	196	98	196
FNL 516 B + 2216 K + H 316	70	110	196	98	196
FNL 516 B + 22216 K + H 316	70	110	196	98	196
FNL 516 B + C 2216 K + H 316 E	70	110	196	98	196
FNL 517 A + 1217 K + H 217	75	117.5	210	105	210
FNL 517 A + 2217 K + H 317	75	117.5	210	105	210
FNL 517 A + 22217 K + H 317	75	117.5	210	105	210
FNL 517 A + C 2217 K + H 317 E	75	117.5	210	105	210
FNL 517 B + 1217 K + H 217	75	115	210	105	210
FNL 517 B + 2217 K + H 317	75	115	210	105	210
FNL 517 B + 22217 K + H 317	75	115	210	105	210
FNL 517 B + C 2217 K + H 317 E	75	115	210	105	210
FNL 518 A + 1218 K + H 218	80	121	210	105	210
FNL 518 A + 2218 K + H 318	80	121	210	105	210
FNL 518 A + 22218 K + H 318	80	121	210	105	210
FNL 518 A + C 2218 K + H 318 E	80	121	210	105	210
FNL 518 B + 1218 K + H 218	80	118	210	105	210
FNL 518 B + 2218 K + H 318	80	118	210	105	210
FNL 518 B + 22218 K + H 318	80	118	210	105	210
FNL 518 B + C 2218 K + H 318 E	80	118	210	105	210
FNL 520 A + 1220 K + H 220	90	130	250	125	250
FNL 520 A + 2220 K + H 320	90	130	250	125	250
FNL 520 A + 22220 K + H 320	90	130	250	125	250
FNL 520 A + C 2220 K + H 320 E	90	130	250	125	250
FNL 520 B + 1220 K + H 220	90	127	250	125	250
FNL 520 B + 2220 K + H 320	90	127	250	125	250
FNL 520 B + 22220 K + H 320	90	127	250	125	250
FNL 520 B + C 2220 K + H 320 E	90	127	250	125	250
FNL 522 A + 1222 K + H 222	100	140	270	135	270
FNL 522 A + 2222 K + H 322	100	140	270	135	270
FNL 522 A + 22222 K + H 322	100	140	270	135	270
FNL 522 A + C 2222 K + H 322 E	100	140	270	135	270
FNL 522 B + 1222 K + H 222	100	137	270	135	270
FNL 522 B + 2222 K + H 322	100	137	270	135	270
FNL 522 B + 22222 K + H 322	100	137	270	135	270
FNL 522 B + C 2222 K + H 322 E	100	137	270	135	270
