LME(LUU) series
Keywords:
Linear Motion Bearings
Category:
Linear Motion Bearings
Product Details
LME(UU) series is A special synthetic rubber seal is incorporated into both ends or either end of the linear bush, thus to prevent foreign matter from entering the linear bush and minimize leaking of the grease.
LME(UU) linear bushing has a steel outer ring with grooves for a circlip and a polyamide ball retainer .

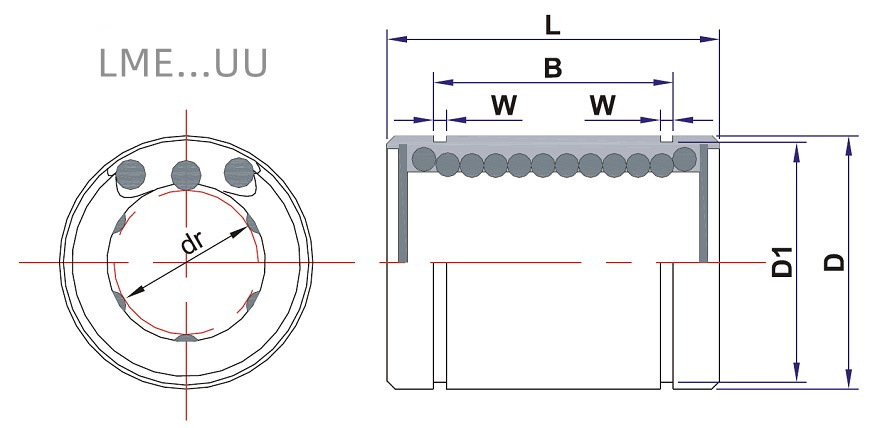

| Bearing NO. | dr（mm） | D（mm） | L（mm） | B（mm） | W（mm） |
| LME3 | 3 | 7 | 10 | - | - |
| LME4 | 4 | 8 | 12 | - | - |
| LME5UU | 5 | 12 | 22 | 14.5 | 1.1 |
| LME8UU | 8 | 16 | 25 | 16.5 | 1.1 |
| LME10UU | 10 | 19 | 29 | 22 | 1.3 |
| LME12UU | 12 | 22 | 32 | 22.9 | 1.3 |
| LME16UU | 16 | 26 | 36 | 24.9 | 1.3 |
| LME20UU | 20 | 32 | 45 | 31.5 | 1.6 |
| LME25UU | 25 | 40 | 58 | 44.1 | 1.85 |
| LME30UU | 30 | 47 | 68 | 52.1 | 1.85 |
| LME40UU | 40 | 62 | 80 | 60.6 | 2.15 |
| LME50L | 50 | 75 | 100 | 77.6 | 2.65 |
| LME60UU | 60 | 90 | 125 | 101.7 | 3.15 |
| LME80UU | 80 | 120 | 168 | 134.8 | 3.65 |
