Spherical roller thrust bearings

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.

Keywords:

Thrust roller bearings

Category:

Thrust roller bearings

+8615610177274

northseiko@bbkbearing.com

E-mail

Related Products

Message

Product Details

Product Details

Spherical roller thrust bearing with stamped steel cage
Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.
High load carrying capacity
Can accommodate combined loads
Allow misalignment or create very stiff bearing arrangements
Long service life and low friction
Separable design

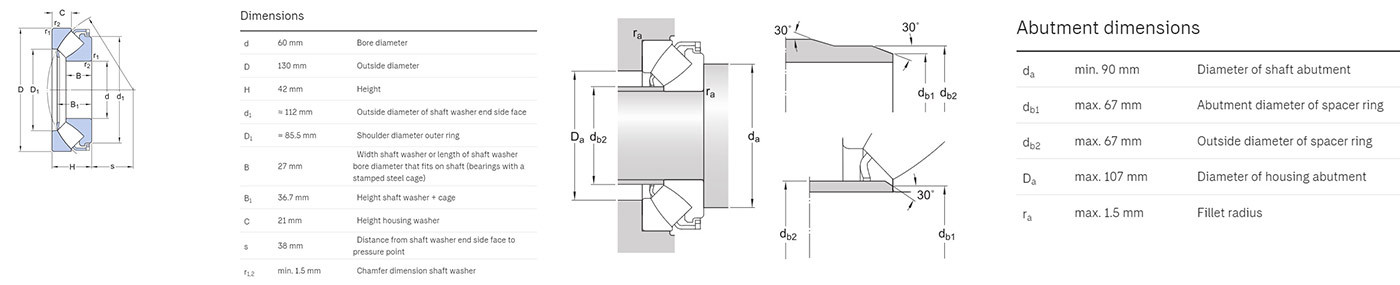

Detailed pictures

Parameter table

Bearing Number	d mm	D mm	H mm
29412 E	60	130	42
29413 E	65	140	45
29414 E	70	150	48
29415 E	75	160	51
29416 E	80	170	54
29317 E	85	150	39
29417 E	85	180	58
29318 E	90	155	39
29418 E	90	190	60
29320 E	100	170	42
29420 E	100	210	67
29322 E	110	190	48
29422 E	110	230	73
29324 E	120	210	54
29424 E	120	250	78
29326 E	130	225	58
29426 E	130	2/0	85
29328 E	140	240	60
29428 E	140	280	85
29230 E	150	215	39
29330 E	150	250	60
29430 E	150	300	90
29332 E	160	270	67
29432 E	160	320	95
29334 E	170	280	67
29434 E	170	340	103
29236 E	180	250	42
29336 E	180	300	73
29436 E	180	360	109
29338 E	190	320	78
29438 E	190	380	115
29240 E	200	280	48
29340 E	200	340	85
29440 E	200	400	122
29244 E	220	300	48
29344 E	220	360	85
29444 E	220	420	122
29248	240	340	60
29348 E	240	380	85
29448 E	240	440	122
29252	260	360	60
29352 E	260	420	95
29452 E	260	480	132
29256	280	380	60
29356 E	280	440	95
29456 E	280	520	145
29260	300	420	73
29360 E	300	480	109
29460 E	300	540	145
29264	320	440	73
29364 E	320	500	109
29464 E	320	580	155
29268	340	460	73
29368	340	540	122
29468 E	340	620	170
29272	360	500	85
29372	360	560	122
29472 EM	360	640	170
29276	380	520	85
29376	380	600	132
29476 EM	380	670	175
29280	400	540	85
29380	400	620	132
29480 EM	400	710	185
29284	420	580	95
29384	420	650	140
29484 EM	420	730	185
29288	440	600	95
29388 EM	440	680	145
29488 EM	440	780	206
29292	460	620	95
29392	460	710	150
29492 EM	460	800	206
29296	480	650	103
29496 EM	480	850	224
292/500	500	670	103
293/500	500	750	150
294/500 EM	500	870	224
292/530 EM	530	710	109
293/530 EM	530	800	160
294/530 EM	530	920	236
292/560	560	750	115
294/560 EM	560	980	250
292/600 EM	600	800	122
294/600 EM	600	1030	258
292/630 EM	630	850	132
293/630 EM	630	950	190
294/630 EM	630	1090	280
294/670 EM	670	1150	290
293/710 EM	710	1060	212
294/710 EF	710	1220	308
294/750 EF	750	1280	315
292/800 EM	800	1060	155
293/800 EM	800	1180	230
294/800 EF	800	1360	335
294/850 EF	850	1440	354
294/900 EF	900	1520	372
294/950 EF	950	1600	390
294/1000 EF	1000	1670	402
294/1060 EF	1060	1770	426
