Single row K series

Needle roller and cage assemblies are self-contained, ready-to-mount bearings without inner and outer rings. In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space. As the clearance of the bearing arrangement is only affected by the roller sorting and the finish of shaft and housing, very precise bearing arrangements can be achieved.

Keywords:

Needle roller Bearings

Category:

Needle roller Bearings

+8615610177274

northseiko@bbkbearing.com

E-mail

Related Products

Message

Product Details

Product Details

Single row needle roller and cage assembly
Needle roller and cage assemblies are self-contained, ready-to-mount bearings without inner and outer rings. In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space. As the clearance of the bearing arrangement is only affected by the roller sorting and the finish of shaft and housing, very precise bearing arrangements can be achieved.
High radial load carrying capacity
High stiffness
High precision
Lowest cross-sectional height among rolling bearings
Accommodate axial displacement in both directions

Detailed pictures

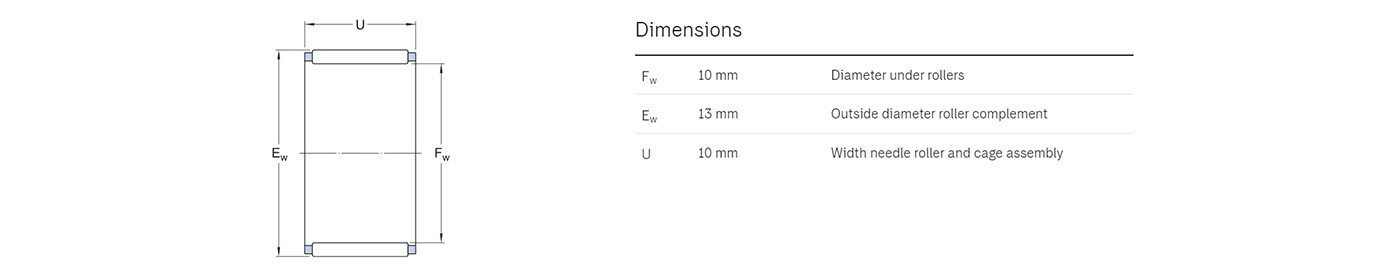

Parameter table

Bearing Number	Fw mm	Ew mm	U mm
K 3X5X7 TN	3	5	7
K3X5X9 TN	3	5	9
K3X6X7 TN	3	6	7
K4X7X10 TN	4	7	10
K4X7X7 TN	4	7	7
K5XBX10 TN	5	8	10
K5XBXB TN	5	8	8
K6X9X10 TN	6	9	10
K6X9X8 TN	6	9	8
K7X10X10 TN	7	10	10
K7X10X8 TN	7	10	8
K7X9X7 TN	7	9	7
K8X11X10 TN	8	11	10
K8X11X13 TN	8	11	13
K8X12X10 TN	8	12	10
K9X12X10 TN	9	12	10
K9X12X13 TN	9	12	13
K10X13X10 TN	10	13	10
K10X13X13 TN	10	13	13
K10X13X16 TN	10	13	16
K10X14X10 TN	10	14	10
K10X14X13 TN	10	14	13
K10X16X12 TN	10	16	12
K12X15X10 TN	12	15	10
K12X15X13 TN	12	15	13
K12X16X13 TN	12	16	13
K12X17X13 TN	12	17	13
K12X18X12 TN	12	18	12
K14X18X10	14	18	10
K14X18X13	14	18	13
K20X24X17	20	24	17
K.20X26X12	20	26	12
K20X26X13	20	26	13
K20X26X17	20	26	17
K.20X26X20	20	26	20
K.20X28X16	20	28	16
K20X28X20	20	28	20
K20X28X25	20	28	25
K20X30X30	20	30	30
K.21X25X13	21	25	13
K.22X26X10	22	26	10
K22X26X13	22	26	13
K.22X26X17	22	26	17
K22X28X17	22	28	17
K22X29X16	22	29	16
K22X30X15 TN	22	30	15
K22X32X24	22	32	24
K23X35X16 TN	23	35	16
K24X28X10	24	28	10
K24X28X13	24	28	13
K24X28X17	24	28	17
K24X30X17	24	30	17
K25X29X10	25	29	10
K25X29X13	25	29	13
K25X29X17	25	29	17
K25X30X17	25	30	17
K25X30X20	25	30	20
K25X31X17	25	31	17
K.25X31X21	25	31	21
K25X32X16	25	32	16
K25X33X20	25	33	20
K 25X33X24	25	33	24
K.25X35X30	25	35	30
K26X30X13	26	30	13
K26X30X17	26	30	17
K.28X33X13	28	33	13
K28X33X17	28	33	17
K28X34X17	28	34	17
K.28X35X16	28	35	16
K.28X35X18	28	35	18
K.28X40X25	28	40	25
K30X34X13	30	34	13
K30X35X13	30	35	13
K30X35X17	30	35	17
K30X35X27	30	35	27
K30X37X16	30	37	16
K30X37X18	30	37	18
K30X40X30	30	40	30
K32X37X13	32	37	13
K32X37X17	32	37	17
K32X37X27	32	37	27
K32X38X20	32	38	20
K32X39X16	32	39	16
K32X39X18	32	39	18
K32X40X25	32	40	25
K32X40X42 ZWTN	32	40	42
K32X46X32	32	46	32
K35X40X13	35	40	13
K35X40X17	35	40	17
K35X40X25	35	40	25
