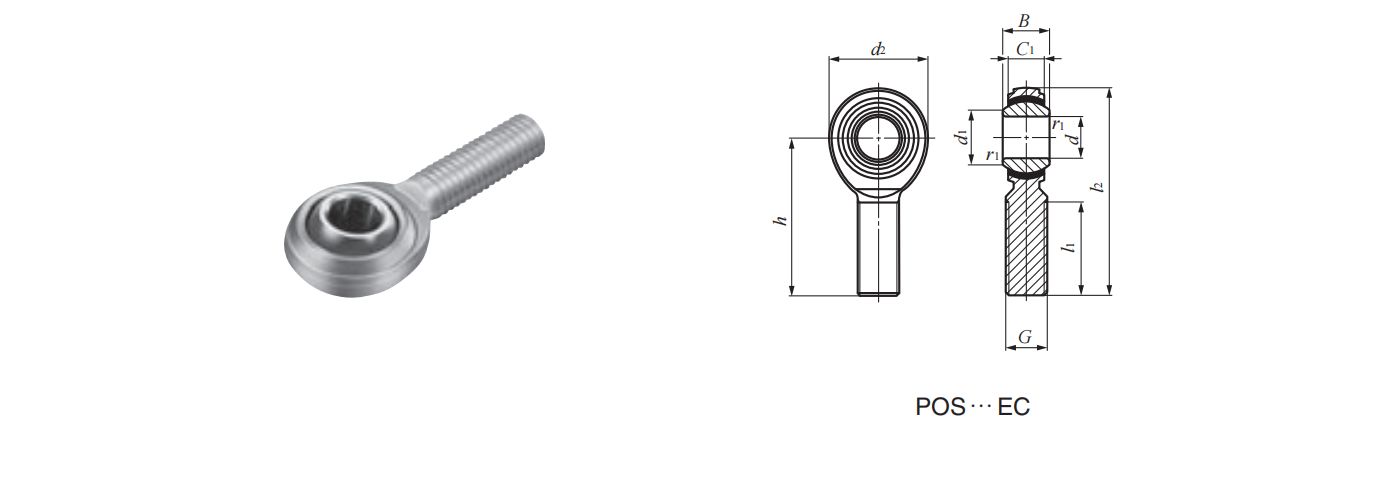

POS (EC) series

The POS(EC) body is treated with zinc chromate, and the joint inner ring is plated with chromium after quenching and hardening, which improves the corrosion resistance. The main body is bonded with a special PTFE liner reinforced with copper alloy mesh, so the sliding face of the load has less creep, and it is a maintenance-free joint bearing with excellent wear resistance. POS… EC has external threads on the main body.

Keywords:

Rod End Bearings

Category:

Rod End Bearings

+8615610177274

northseiko@bbkbearing.com

E-mail

Related Products

Message

Product Details

Bearing NO.	d	G	d2	C1	B	d1	l2	h	l1	r1	Ball dia. mm
POS 3EC	3	M 3×0.5	12	4.5	6	5.2	33	27	15	0.2	7.938
POS 4EC	4	M 4×0.7	14	5.3	7	6.5	37	30	17	0.2	9.525
POS 5EC	5	M 5×0.8	16	6	8	7.7	41	33	20	0.2	11.112
POS 6EC	6	M 6×1	18	6.75	9	9	45	36	22	0.2	12.700
POS 8EC	8	M 8×1.25	22	9	12	10.4	53	42	25	0.2	15.875
POS 10EC	10	M10×1.5	26	10.5	14	12.9	61	48	29	0.2	19.050
POS 12EC	12	M12×1.75	30	12	16	15.4	69	54	33	0.2	22.225
POS 14EC	14	M14×2	34	13.5	19	16.9	77	60	36	0.2	25.400
POS 16EC	16	M16×2	38	15	21	19.4	85	66	40	0.2	28.575
POS 18EC	18	M18×1.5	42	16.5	23	21.9	93	72	44	0.2	31.750
POS 20EC	20	M20×1.5	46	18	25	24.4	101	78	47	0.2	34.925
POS 22EC	22	M22×1.5	50	20	28	25.8	109	84	51	0.2	38.100
