Insert Bearings UC &SB series

Pillow Block Ball Bearing is a bearing unit that combines a rolling bearing with a bearing housing. Most of the outer spherical bearings are made of spherical surfaces and are mounted together with imported bearing housings with spherical inner holes. The structure is diverse, versatile and interchangeable. At the same time, these bearings are also designed with a certain degree of self-alignment, easy to install, and have a double-structured sealing device that can work in harsh environments. The bearing housing is typically cast. Commonly used seats are vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat (T )Wait.

Keywords:

Pillow Block Bearings

Category:

Pillow Block Bearings

+8615610177274

Whatsapp

northseiko@bbkbearing.com

E-mail

Related Products
Message

Product Details

Pillow Block Ball Bearing is a bearing unit that combines a rolling bearing with a bearing housing. Most of the outer spherical bearings are made of spherical surfaces and are mounted together with imported bearing housings with spherical inner holes. The structure is diverse, versatile and interchangeable.

At the same time, these bearings are also designed with a certain degree of self-alignment, easy to install, and have a double-structured sealing device that can work in harsh environments. The bearing housing is typically cast. Commonly used seats are vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat (T )Wait.

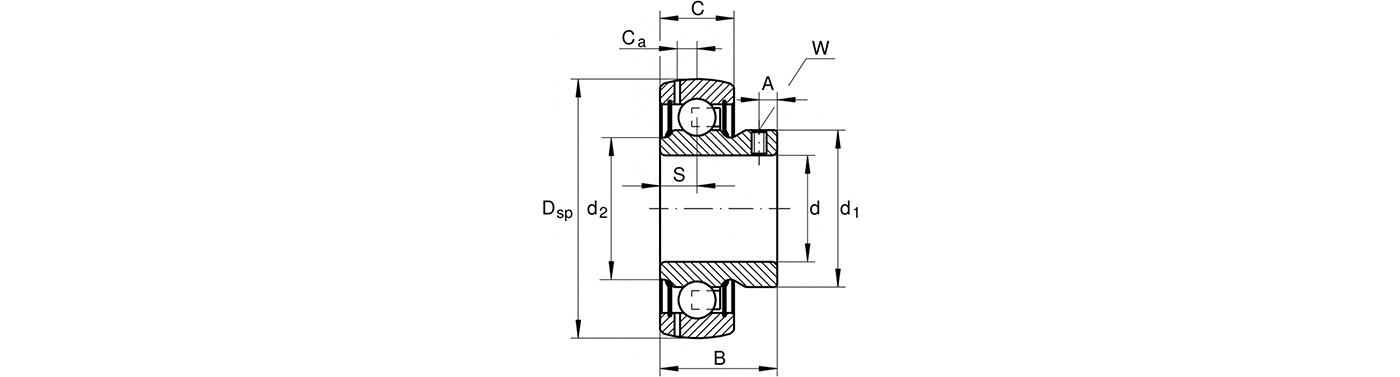

Bearing NO. d mm D mm B mm C mm
UC204 20 47 31 16
UC205 25 52 34 17
UC206 30 62 38.1 19
UC207 35 72 42.9 20
UC208 40 80 49.2 21
UC209 45 85 49.2 22
UC210 50 90 51.6 23
UC211 55 100 55.6 25
UC212 60 110 65.1 27
UC213 65 120 65.1 28
UC214 70 125 74.6 30
UC215 75 130 77.8 30
UC216 80 140 82.6 33
UC217 85 150 85.7 35
UC218 90 160 96 37
UC220 100 180 108 41
UC305 25 62 38 21
UC306 30 72 43 23
UC307 35 80 48 25
UC308 40 90 52 27
UC309 45 100 57 30
UC310 50 110 61 32
UC311 55 120 66 34
UC312 60 130 71 36
UC313 65 140 75 38
UC314 70 150 78 40
UC315 75 160 82 42
UC316 80 170 86 44
UC317 85 180 96 46
UC318 90 190 96 48
UC319 95 200 103 50
UC320 100 215 108 54
UC321 105 225 112 56
UC322 110 240 117 60
UC324 120 260 126 64
UC326 130 280 135 68
UC328 140 300 145 73
UC201X3 12 47 31 17
UC202X3 15 47 31 17
UC203X3 17 47 31 17
UC201-8 12.7 47 31 17
UC202-9 14.287 40 31 17
UC201-10 15.875 47 31 17
UC201-12 19.05 47 31 17
UC202-10 15.875 47 31 17
UC203-11 17.462 47 31 17
UC204-12 19.05 47 31 16
UC205-14 22.225 52 34.1 17
UC205-15 23.812 52 34.1 17
UC205-16 25.4 52 34.1 17
UC206-17 26.987 62 38.1 19
UC206-18 30.162 62 38.1 19
UC206-19 31.75 62 38.1 19
UC206-20 31.75 72 42.9 20
UC207-21 33.338 72 42.9 20
UC207-22 34.952 72 42.9 20
UC207-23 36.512 72 42.9 20
UC208-24 38.1 80 49.2 21
UC208-25 39.688 80 49.2 21
UC209-26 41.275 85 49.2 22
UC209-27 42.862 85 49.2 22
UC209-28 44.45 85 49.2 22
UC210-30 47.625 90 51.6 23
UC210-31 49.212 90 51.6 23
UC210-32 50.8 90 51.6 23
UC211-32 50.8 100 55.6 25
UC211-34 53.975 100 55.6 25
UC211-35 55.562 100 55.6 25
UC212-36 57.15 110 65.1 27
UC212-38 60.325 110 65.1 27
UC212-39 61.912 110 65.1 27
UC213-40 63.5 120 65.1 28
UC214-44 69.85 125 74.6 30
UC215-44 69.85 130 77.8 33.3
UC215-47 74.612 130 77.8 30
UC215-48 76.2 130 77.8 30
UC216-52 82.55 140 82.6 33.3
UC217-52 82.55 150 85.7 35
UC218-56 88.9 160 96 37
UB201 12 40 22 12
UB202 15 40 22 12
UB203 17 40 22 12
UB204 20 47 25 14
UB205 25 52 27 15
UB206 30 62 30 16
UB207 35 72 32 17
UB208 40 80 34 18
UCW201 12 40 27.4 15
UC202 15 40 27.4 14
UCW202 15 40 27.4 15
UC203 17 40 27.4 14
UCW203 17 40 27.4 15
SB207G 35 72 32 17
SB208 40 80 34 19
SB208G 40 80 34 19
SB209 45 85 36 19
SB210 50 90 38 20
SB211 55 100 41 21
MT205 25 52 28.3 17
MT206 30 62 31.7 19
MT207 35 72 35.4 20
SB201-8 12.7 40 22 12
SB201-8G 12.7 40 22 12
SB202-10 15.875 40 22 12
SB202-10G 15.875 40 22 12
SB202-9 14.288 40 22 12
SB203-11 17.462 40 22 12
SB203-11G 17.462 40 22 12
SB204-12 19.05 47 25 14
SB204-12G 19.05 47 25 14
SB204-14 22.225 47 25 14
SB205-14 22.225 52 27 15
SB205-14G 22.225 52 27 15
SB205-15 23.812 52 27 15
SB205-15G 23.812 52 27 15
SB205-16 25.4 52 27 15
SB205-16G 25.4 52 27 15
SB206-17 26.987 62 29 16
SB206-18 28.575 62 29 16
SB206-18G 28.575 62 29 16
SB206-19 30.162 62 29 16
SB206-19G 30.162 62 29 16
SB206-20 31.75 62 29 16
SB206-20G 31.75 62 29 16
SB207-20 31.75 72 32 17
SB207-20G 31.75 62 29 16
SB207-21 33.338 62 29 16
SB207-21G 33.338 62 29 16
SB207-22 34.952 62 29 16
SB207-22G 34.952 62 29 16
SB207-23 36.512 72 32 17
SB207-23G 36.512 72 32 17
SB208-24 38.1 80 34 19
SB208-24G 38.1 80 34 19
SB208-25 39.688 80 34 19
SB208-25G 39.688 80 34 19
SB209-26 41.275 85 36 19
SB209-27 42.862 85 36 19
SB209-28 44.45 85 36 19
SB210-30 47.625 90 38 20
SB210-31 49.212 90 38 20
SB210-32 50.8 90 38 20
SB211-32 50.8 100 41 21
SB211-34 53.975 100 41 21
SB211-35 55.562 100 41 21
SB212-36 57.15 110 53.7 22
SB212-39 61.912 110 53.7 22







Packing and shipping

We are an excellent bearing supplier and manufacturer in China, and at the same time with Japan NSK KOYO NTN NACHI ASAHI bearings, THK IKO linear bearings, Sweden SKF bearings, Germany FAG and INA bearings, NADELLA bearings, The United States TIMKEN KAYDON RBC bearing and other world famous manufacturers to maintain good strategic partnership.

图片名称

Packing and shipping

Founded in 2005, North Seiko Bearing has been deeply engaged in the bearing industry for 20 years, providing bearings and bearing solutions for well-known domestic enterprises.

图片名称

FAQ

图片名称

Q:Do you provide samples?

图片名称

A:Yes, we provide samples, but shipping cost and tax pay by buyer.

图片名称

Q:How to choose a bearing?

图片名称

A:We have a professional engineer team to help you choose bearing and find appropriate solutions, contact us now!

图片名称

Q:How about the quality of products in your company?

图片名称

A:We implement strict inspection on all bearing parts before the production and during the production process, all bearing meet ISO international standard.

图片名称

Q:what services can we provide?

图片名称

A:Accepted Delivery Terms: FOB,EXW； Accepted Payment Currency:USD; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese

图片名称

Q:what can you buy from us?

图片名称

A:Deep Groove Ball Bearing, Angular Contact Ball Bearing, Tapered Roller Bearing, Needle Roller Bearing, Thrust Ball Bearing

图片名称

Q:how can we guarantee quality?

图片名称

A:Always a pre-production sample before mass production; Always final Inspection before shipment;
