Insert Bearings UCFLU series

UCFLU NAFLU two-bolt flanged units are suggested for industrial applications where normal loads are encountered. This series is primarily designed for applications where the mounting area is restricted. These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment. The bonded seal design is well-suited for applications involving wet or dirty environments. Bolt-hole spacing dimensions and shaft center location are interchangeable with competitive units.

Keywords:

Pillow Block Bearings

Category:

Pillow Block Bearings

+8615610177274

northseiko@bbkbearing.com

E-mail

Related Products

Message

Product Details

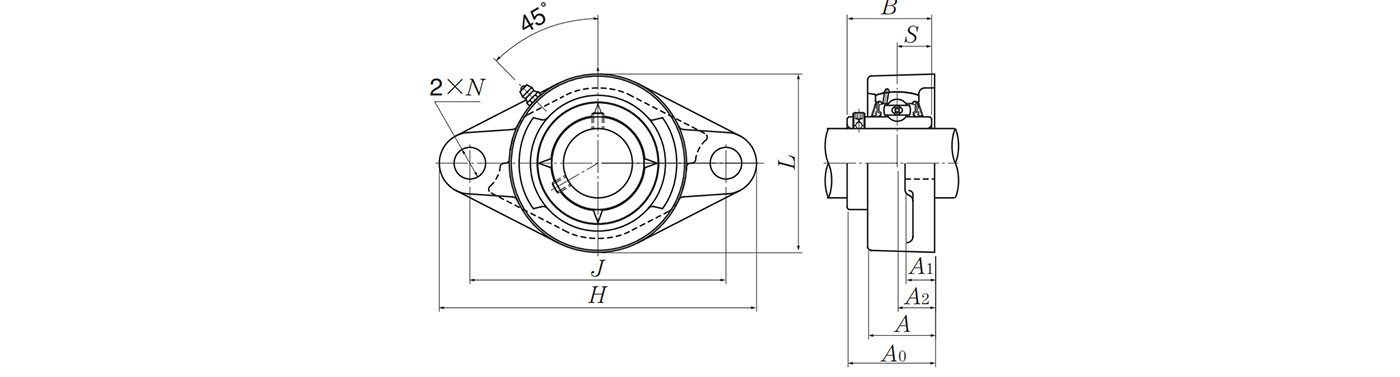

Bearing NO.	d mm	H mm	J mm	L mm	A0 mm
UCFLU201-8	12.7	99	86.5	57	33.3
UCFLU202-9	14.288	99	86.5	57	33.3
UCFLU202-10	15.875	99	86.5	57	33.3
UCFLU203-11	17.462	99	86.5	57	33.3
UCFLU204-12	19.05	113	90	60	33.3
UCFLU205-14	22.225	130	99	68	35.8
UCFLU205-15	23.812	130	99	68	35.8
UCFLU205-16	25.4	130	99	68	35.8
UCFLU206-18	28.575	148	117	80	40.2
UCFLU206-19	30.162	148	117	80	40.2
UCFLU206-20	31.75	148	117	80	40.2
UCFLU207-20	31.75	161	130	90	44.4
UCFLU207-21	33.338	161	130	90	44.4
UCFLU207-22	34.952	161	130	90	44.4
UCFLU207-23	36.512	161	130	90	44.4
UCFLU208-24	38.1	175	144	100	51.2
UCFLU208-25	39.688	175	144	100	51.2
UCFLU209-26	41.275	188	148	108	52.2
UCFLU209-27	42.862	188	148	108	52.2
UCFLU209-28	44.45	188	148	108	52.2
UCFLU210-30	47.625	197	157	115	54.6
UCFLU210-31	49.212	197	157	115	54.6
UCFLU210-32	50.8	197	157	115	54.6
UCFLU211-32	50.8	224	184	130	58.4
UCFLU211-34	53.975	224	184	130	58.4
UCFLU211-35	55.562	224	184	130	58.4
UCFLU212-36	57.15	250	202	140	68.7
UCFLU212-37	58.738	250	202	140	68.7
UCFLU212-38	60.325	250	202	140	68.7
UCFLU212-39	61.912	250	202	140	68.7
UCFLU213-40	63.5	258	210	155	69.7
UCFLU213-43	68.262	258	210	155	69.7
UCFLU214-44	69.85	265	216	160	75.4
UCFLU215-44	69.85	275	225	165	78.5
UCFLU215-47	74.612	275	225	165	78.5
UCFLU215-48	76.2	275	225	165	78.5
UCFLU216-52	82.55	290	233	180	83.3
UCFLU217-52	82.55	305	248	190	87.6
UCFLU218-56	88.9	320	265	205	96.3
NAFLU201	12	113	90	62	445.5
NAFLU202	15	113	90	62	445.5
NAFLU203	17	113	90	62	445.5
NAFLU204	20	113	90	62	445.5
NAFLU205	25	125	99	70	45.9
NAFLU206	30	142	116.5	81	50.1
NAFLU207	35	156	130	91	53.3
NAFLU208	40	172	143.5	101	58.9
NAFLU209	45	180	148.5	108	58.9
NAFLU210	50	190	157	115	66.1
NAFLU211	55	217	184	127	74.7
NAFLU212	60	235	202	138	80.9
NAFLU213	65	250	210	148	89.6
NAFLU214	70	258	216	155	89.6
NAFLU215	75	270	225	165	95.8
NAFLU216	80	290	233	180	99.9
NAFLU201-8	12.7	113	90	62	45.5
NAFLU202-10	15.875	113	90	62	45.5
NAFLU202-9	14.288	113	90	62	45.5
NAFLU203-11	17.462	113	90	62	45.5
NAFLU204-12	19.05	113	90	62	45.5
NAFLU205-14	22.225	125	99	70	45.9
NAFLU205-15	23.812	125	99	70	45.9
NAFLU205-16	25.4	125	99	70	45.9
NAFLU206-18	28.575	142	116.5	81	50.1
NAFLU206-19	30.162	142	116.5	81	50.1
NAFLU206-20	31.75	142	116.5	81	50.1
NAFLU207-20	31.75	156	130	91	53.3
NAFLU207-21	33.338	156	130	91	53.3
NAFLU207-22	34.952	156	130	91	53.3
NAFLU207-23	36.512	156	130	91	53.3
NAFLU208-24	38.1	172	143.5	101	58.9
NAFLU208-25	39.688	172	143.5	101	58.9
NAFLU209-26	41.275	180	148.5	108	58.9
NAFLU209-27	42.862	180	148.5	108	58.9
NAFLU209-28	44.45	180	148.5	108	58.9
NAFLU210-30	47.625	190	157	115	66.1
NAFLU210-31	49.212	190	157	115	66.1
NAFLU210-32	50.8	190	157	115	66.1
NAFLU211-32	50.8	217	184	127	74.7
NAFLU211-34	53.975	217	184	127	74.7
NAFLU211-35	55.562	217	184	127	74.7
NAFLU212-36	57.15	235	202	138	80.9
NAFLU212-37	58.738	235	202	138	80.9
NAFLU212-38	60.325	235	202	138	80.9
NAFLU212-39	61.912	235	202	138	80.9
NAFLU213-40	63.5	250	210	148	89.6
NAFLU213-43	68.262	250	210	148	89.6
NAFLU214-44	69.85	258	216	155	89.6
NAFLU215-44	69.85	270	225	165	95.8
NAFLU215-47	74.612	270	225	165	95.8
NAFLU215-48	76.2	270	225	165	95.8
