Insert Bearings SNL series

SNL plummer (pillow) block housings are the most popular bearing housings on the market, developed to be the first choice fBearing NO. or design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

Keywords:

Pillow Block Bearings

Category:

Pillow Block Bearings

+8615610177274

northseiko@bbkbearing.com

E-mail

Related Products

Message

Product Details

SNL plummer (pillow) block housings are the most popular bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

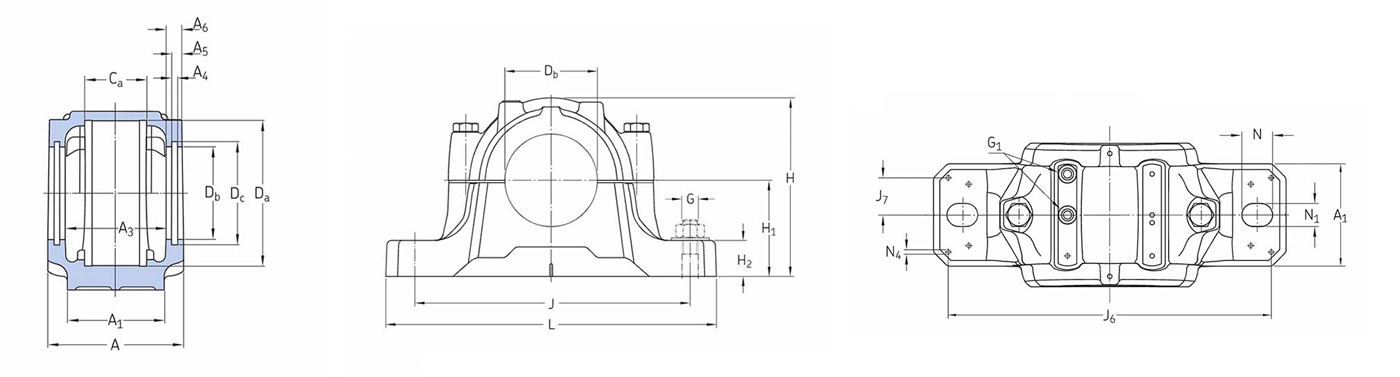

Bearing NO.	Da mm	Ca mm	H1 mm	A mm	H mm	L mm	NO.	J mm
SNL 205	52	25	40	67	74	165	2	130
SNL 205 V	52	25	40	67	74	165	2	130
SNL 505	52	25	40	67	74	165	2	130
SNL 505 V	52	25	40	67	74	165	2	130
SNL 206-305	62	32	50	77	89	185	2	150
SNL 206-305 V	62	32	50	77	89	185	2	150
SNL 506-605	62	32	50	77	89	185	2	150
SNL 506-605 V	62	32	50	77	89	185	2	150
SNL 207	72	34	50	82	93	185	2	150
SNL 207 V	72	34	50	82	93	185	2	150
SNL 507-606	72	34	50	83	93	185	2	150
SNL 507-606 V	72	34	50	83	93	185	2	150
SNL 507-606 VU	72	34	50	83	93	185	2	150
SNL 208-307	80	39	60	85	108	205	2	170
SNL 208-307 V	80	39	60	85	108	205	2	170
SNL 508-607	80	39	60	85	108	205	2	170
SNL 508-607 V	80	39	60	85	108	205	2	170
SNL 508-607 VU	80	39	60	85	108	205	2	170
SNL 209	85	30	60	85	109	205	2	170
SNL 209 V	85	30	60	85	109	205	2	170
SNL 209 VU	85	30	60	85	109	205	2	170
SNL 509	85	30	60	85	109	205	2	170
SNL 509 V	85	30	60	85	109	205	2	170
SNL 509 VU	85	30	60	85	109	205	2	170
SNL 210	90	41	60	90	114	205	2	170
SNL 210 V	90	41	60	90	114	205	2	170
SNL 510-608	90	41	60	90	113	205	2	170
SNL 510-608 V	90	41	60	90	113	205	2	170
SNL 510-608 VU	90	41	60	90	113	205	2	170
SNLD 210	90	41	60	90	114	205	2	170
FSNL 511-609	100	44	70	95	127	255	4	210
FSNLD 511-609	100	44	70	95	127	255	4	210
SNL 211	100	44	70	95	127	255	2	210
SNL 211 V	100	44	70	95	127	255	2	210
SNL 211 VU	100	44	70	95	127	255	2	210
SNL 511-609	100	44	70	95	127	255	2	210
SNL 511-609 V	100	44	70	95	127	255	2	210
SNL 511-609 VU	100	44	70	95	127	255	2	210
SNLD 211	100	44	70	95	127	255	2	210
SNLD 511-609	100	44	70	95	127	255	2	210
FSNL 212	110	48	70	105	134	255	4	210
SNL 212	110	48	70	105	134	255	2	210
SNL 212 V	110	48	70	105	134	255	2	210
SNL 212 VU	110	48	70	105	134	255	2	210
SNL 512-610	110	48	70	105	134	255	2	210
SNL 512-610 V	110	48	70	105	134	255	2	210
SNL 512-610 VU	110	48	70	105	134	255	2	210
SNL 512-610/MS2	110	48	70	105	134	255	4	200
SNLD 212	110	48	70	105	134	255	2	210
SNLD 512-610	110	48	70	105	134	255	2	210
FSNL 513-611	120	51	80	110	149	275	4	230
FSNLD 513-611	120	51	80	110	149	275	4	230
SNL 213	120	51	80	110	149	275	2	230
SNL 213 V	120	51	80	110	149	275	2	230
SNL 213 VU	120	51	80	110	149	275	2	230
SNL 513-611	120	51	80	110	149	275	2	230
SNL 513-611 V	120	51	80	110	149	275	2	230
SNL 513-611 VU	120	51	80	110	149	275	2	230
SNLD 213	120	51	80	110	149	275	2	230
SNLD 513-611	120	51	80	110	149	275	2	230
FSNL 515-612	130	56	80	115	155	280	4	230
FSNLD 515-612	130	56	80	115	155	280	4	230
SNL 215	130	56	80	115	155	280	2	230
SNL 215 V	130	56	80	115	155	280	2	230
SNL 215 VU	130	56	80	115	155	280	2	230
SNL 215/MS2	130	56	80	115	155	280	4	220
SNL 515-612	130	56	80	115	155	280	2	230
SNL 515-612 V	130	56	80	115	155	280	2	230
SNL 515-612 VU	130	56	80	115	155	280	2	230
SNLD 215	130	56	80	115	155	280	2	230
SNLD 515-612	130	56	80	115	155	280	2	230
FSNL 216	140	58	95	120	177	315	4	260
FSNL 516-613	140	58	95	120	177	315	4	260
FSNLD 516-613	140	58	95	120	177	315	4	260
SNL 216	140	58	95	120	177	315	2	260
SNL 216 V	140	58	95	120	177	315	2	260
SNL 516 TURU	140	58	95	118	177	315	2	260
SNL 516-613	140	58	95	120	177	315	2	260
SNL 516-613 V	140	58	95	120	177	315	2	260
SNL 516-613 VU	140	58	95	120	177	315	2	260
SSNLD 216	140	58	95	120	177	315	0	260
SSNLD 516-613	140	58	95	120	177	315	0	260
FSNL 217	150	61	95	125	183	320	4	260
FSNL 517	150	61	95	125	183	320	4	260
FSNLD 517	150	61	95	125	183	320	4	260
SNL 217	150	61	95	125	183	320	2	260
SNL 217 V	150	61	95	125	183	320	2	260
SNL 517	150	61	95	125	183	320	2	260
SNL 517 TURU	150	61	95	120	183	320	2	260
SNL 517 V	150	61	95	125	183	320	2	260
SNL 517 VU	150	61	95	125	183	320	2	260
SNL 517/MS2	150	61	95	125	183	320	4	252
SSNLD 217	150	61	95	125	183	320	0	260
SSNLD 517	150	61	95	125	183	320	0	260
FSNL 218	160	65	100	143	192	345	4	290
FSNL 518-615	160	65	100	143	192	345	4	290
FSNLD 218	160	65	100	143	192	345	4	290
FSNLD 518-615	160	65	100	143	192	345	4	290
SNL 218	160	65	100	143	192	345	2	290
SNL 218 V	160	65	100	143	192	345	2	290
SNL 518 TURU	160	65	100	136	192	345	2	290
SNL 518-615	160	65	100	143	192	345	2	290
SNL 518-615 V	160	65	100	143	192	345	2	290
SNL 518-615 VU	160	65	100	143	192	345	2	290
SNL 518-615/MS2	160	65	100	143	192	345	4	280
SNLD 218	160	65	100	143	192	345	2	290
FSNL 519-616	170	68	112	145	212	345	4	290
SNL 519 TURU	170	68	112	142	212	345	2	290
SNL 519-616	170	68	112	145	212	345	2	290
SNL 519-616 V	170	68	112	145	212	345	2	290
SNL 519-616 VU	170	68	112	145	212	345	2	290
SNL 519-616/MS2	170	68	112	145	212	345	4	280
SNL 616 TURU	170	68	112	142	212	345	2	290
SSNLD 519-616	170	68	112	145	212	345	0	290
FSNL 520-617	180	70	112	160	218	380	4	320
FSNLD 520-617	180	70	112	160	218	380	4	320
SNL 520 TURU	180	70	112	158	218	380	2	320
SNL 520-617	180	70	112	160	218	380	2	320
SNL 520-617 V	180	70	112	160	218	380	2	320
SNL 520-617 VU	180	70	112	160	218	380	2	320
SNL 617 TURU	180	70	112	158	218	380	2	320
SSNLD 520-617	180	70	112	160	218	380	0	320
FSNL 522-619	200	80	125	175	242	410	4	350
FSNLD 522-619	200	80	125	175	242	410	4	350
SNL 319 TURU	200	80	125	170	242	410	2	350
SNL 522 TURU	200	80	125	170	242	410	2	350
SNL 522-619	200	80	125	175	242	410	2	350
SNL 522-619 V	200	80	125	175	242	410	2	350
SNL 522-619 VU	200	80	125	175	242	410	2	350
FSNL 524-620	215	86	140	185	271	410	4	350
FSNLD 524-620	215	86	140	185	271	410	4	350
SNL 320 TURU	215	86	140	178	271	410	2	350
SNL 524 TURU	215	86	140	178	271	410	2	350
SNL 524-620	215	86	140	185	271	410	2	350
SNL 524-620 V	215	86	140	185	271	410	2	350
SNL 524-620 VU	215	86	140	185	271	410	2	350
SNL 620 TURU	215	86	140	178	271	410	2	350
FSNL 526	230	90	150	190	290	445	4	380
FSNLD 526	230	90	150	190	290	445	4	380
SNL 526	230	90	150	190	290	445	2	380
SNL 526 TURU	230	90	150	184	290	445	2	380
SNL 526 V	230	90	150	190	290	445	2	380
SNL 526 VU	230	90	150	190	290	445	2	380
SSNLD 526	230	90	150	190	290	445	0	380
FSNL 528	250	98	150	205	302	500	4	420
FSNLD 528	250	98	150	205	302	500	4	420
SNL 528	250	98	150	205	302	500	2	420
SNL 528 TURU	250	98	150	198	302	500	2	420
SNL 528 V	250	98	150	205	302	500	2	420
SNL 528 VU	250	98	150	205	302	500	2	420
SNL 528/MS2	250	98	150	205	302	500	4	400
SNLD 528	250	98	150	205	302	500	2	420
FSNL 530	270	106	160	220	323	530	4	450
FSNLD 530	270	106	160	220	323	530	4	450
SNL 530	270	106	160	220	323	530	2	450
SNL 530 TURU	270	106	160	214	323	530	2	450
SNL 530 V	270	106	160	220	323	530	2	450
SNL 530 VU	270	106	160	220	323	530	2	450
SSNLD 530	270	106	160	220	323	530	0	450
FSNL 532	290	114	170	235	344	550	4	470
FSNLD 532	290	114	170	235	344	550	4	470
SNL 532	290	114	170	235	344	550	2	470
SNL 532 TURU	290	114	170	230	344	550	2	470
SNL 532 V	290	114	170	235	344	550	2	470
SNL 532 VU	290	114	170	235	344	550	2	470
SSNLD 532	290	114	170	235	344	550	0	470
