Double Row Full Complement Cylindrical Roller Bearings
Keywords:
Cylindrical Roller Bearings
Category:
Cylindrical Roller Bearings
Product Details
Product Details
Double row full complement cylindrical roller bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads in combination with moderate speeds. Having three flanges on the inner ring and one flange on the outer ring, NNCF design bearings can accommodate limited axial displacement in one direction. A retaining ring in the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.
Very high radial load carrying capacity
High radial stiffness
Long service life
Locate the shaft axially in one direction
Relubrication feature

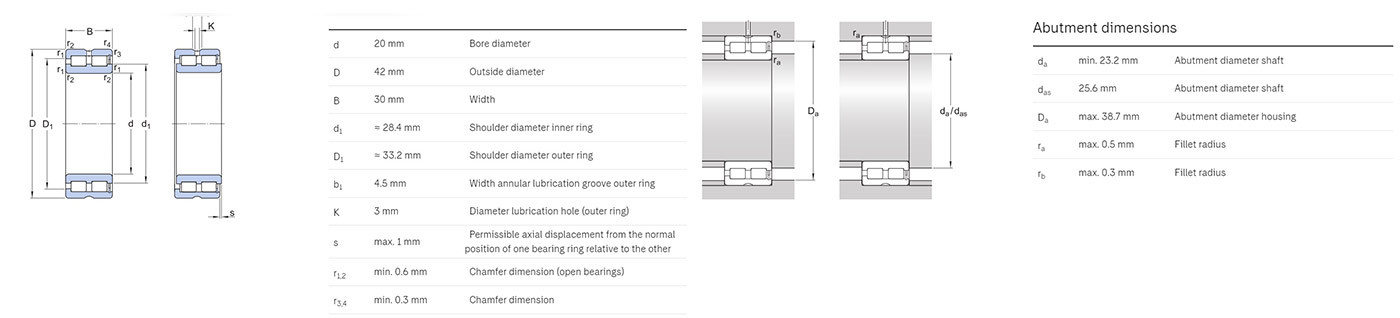

Detailed pictures
Parameter table
| Bearing Number | d mm | D mm | B mm |
| NNCF 5004 CV | 20 | 42 | 30 |
| NNCF 5005 CV | 25 | 47 | 30 |
| NNCF 5006 CV | 30 | 55 | 34 |
| NNCF 5007 CV | 35 | 62 | 36 |
| NNCF 5008 CV | 40 | 68 | 38 |
| NNCF 5009 CV | 45 | 75 | 40 |
| NNCF 5010 CV | 50 | 80 | 40 |
| NNCF 5011 CV | 55 | 90 | 46 |
| NNCF 4912 CV | 60 | 85 | 25 |
| NNCF 5012 CV | 60 | 95 | 46 |
| NNCF 5013 CV | 65 | 100 | 46 |
| NNCF 4914 CV | 70 | 100 | 30 |
| NNCF 5014 CV | 70 | 110 | 54 |
| NNCF 5015 CV | 75 | 115 | 54 |
| NNCF 4916 CV | 80 | 110 | 30 |
| NNCF 5016 CV | 80 | 125 | 60 |
| NNCF 5017 CV | 85 | 130 | 60 |
| NNCF 5018 CV | 90 | 140 | 67 |
| NNCL 4918 CV | 90 | 125 | 35 |
| NNCF 4920 CV | 100 | 140 | 40 |
| NNCF 5020 CV | 100 | 150 | 67 |
| NNCF 4922 CV | 110 | 150 | 40 |
| NNCF 5022 CV | 110 | 170 | 80 |
| NNCF 4924 CV | 120 | 165 | 45 |
| NNCF 5024 CV | 120 | 180 | 80 |
| 319426 B-2LS | 130 | 190 | 80 |
| NNCF 4926 CV | 130 | 180 | 50 |
