Double direction angular contact thrust ball bearing, super-precision, basic design
Double direction angular contact thrust ball bearings are designed to locate spindle shafts axially in both directions. These bearings are intended for mounting in combination with cylindrical roller bearings, and consist of two single row angular contact thrust ball bearings arranged back-to-back. The large number of balls enables these bearings to accommodate high axial loads in both directions and provides a high degree of system rigidity.
Accommodate high axial loads in both directions
Offer maximum load carrying capacity and maximum system rigidity
Available for shaft diameters from 35 to 200 mm
Available with either steel or ceramic balls
Separable

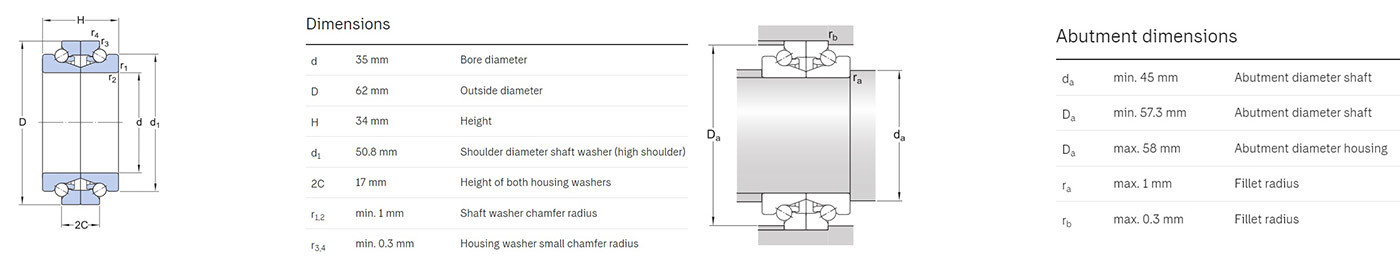

Detailed pictures
Parameter table
| Bearing Number | d mm | D mm | H mm |
| BTW35 CTN9/SP | 35 | 62 | 34 |
| BTW 40 CTN9/SP | 40 | 68 | 36 |
| BTW 45 CTN9/SP | 45 | 75 | 38 |
| BTW 50 CTN9/SP | 50 | 80 | 38 |
| BTW 55 CTN9/SP | 55 | 90 | 44 |
| BTW 60 CTN9/SP | 60 | 95 | 44 |
| BTW 65 CTN9/SP | 65 | 100 | 44 |
| BTW70 CTN9/SP | 70 | 110 | 48 |
| BTW75 CTN9/SP | 75 | 115 | 48 |
| BTW 80 CTN9/SP | 80 | 125 | 54 |
| BTW 85 CTN9/SP | 85 | 130 | 54 |
| BTW 90 CTN9/SP | 90 | 140 | 60 |
| BTW 95 CTN9/SP | 95 | 145 | 60 |
| BTM100 BTN9/P4CDB | 100 | 150 | 45 |
| BTW 100 CTN9/SP | 100 | 150 | 60 |
| BTW110 CTN9/SP | 110 | 170 | 72 |
| BTM 120 ATN9/P4CDB | 120 | 180 | 54 |
| BTW120 CTN9/SP | 120 | 180 | 72 |
| BTM 130 BTN9/HCP4CDB | 130 | 200 | 63 |
| BTW130 CTN9/SP | 130 | 200 | 84 |
| BTW140 CM/SP | 140 | 210 | 84 |
| BTW 150 CM/SP | 150 | 225 | 90 |
| BTW 160 CM/SP | 160 | 240 | 96 |
| BTW170 CM/SP | 170 | 260 | 108 |
| BTW 180 CM/SP | 180 | 280 | 120 |
| BTW190 CM/SP | 190 | 290 | 120 |
| BTW 200 CM/SP | 200 | 310 | 132 |
Packing and shipping
We are an excellent bearing supplier and manufacturer in China, and at the same time with Japan NSK KOYO NTN NACHI ASAHI bearings, THK IKO linear bearings, Sweden SKF bearings, Germany FAG and INA bearings, NADELLA bearings, The United States TIMKEN KAYDON RBC bearing and other world famous manufacturers to maintain good strategic partnership.
Packing and shipping
Founded in 2005, North Seiko Bearing has been deeply engaged in the bearing industry for 20 years, providing bearings and bearing solutions for well-known domestic enterprises.
FAQ
Q:Do you provide samples?
A:Yes, we provide samples, but shipping cost and tax pay by buyer.
Q:How to choose a bearing?
A:We have a professional engineer team to help you choose bearing and find appropriate solutions, contact us now!
Q:How about the quality of products in your company?
A:We implement strict inspection on all bearing parts before the production and during the production process, all bearing meet ISO international standard.
Q:what services can we provide?
A:Accepted Delivery Terms: FOB,EXW； Accepted Payment Currency:USD; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese
Q:what can you buy from us?
A:Deep Groove Ball Bearing, Angular Contact Ball Bearing, Tapered Roller Bearing, Needle Roller Bearing, Thrust Ball Bearing
Q:how can we guarantee quality?
A:Always a pre-production sample before mass production; Always final Inspection before shipment;
