Product Details

Product Details

Double row angular contact ball bearings, with two-piece inner ring, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space than the equivalent pair of single row angular contact ball bearings. The two-piece inner ring enables incorporation of a larger number of balls, with a larger contact angle, providing a high load carrying capacity, especially in the axial direction.
Accommodate very high axial loads in both directions, radial loads, and tilting moments
Suitable where a stiff bearing arrangement is required
Separable design means outer ring with ball and cage assemblies can be mounted independently of the inner ring halves

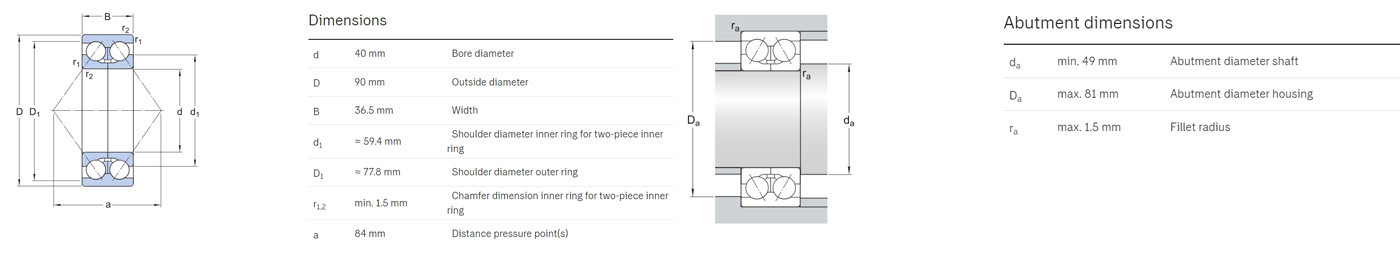

Detailed pictures

Parameter table

Bearing Number	d mm	D mm	B mm
3307 DJ1	35	80	34.9
3308 DMA	40	90	36.5
3308 DNRCBM	40	90	36.5
3308 DTN9	40	90	36.5
3309 DMA	45	100	39.7
3309 DNRCBM	45	100	39.7
3310 DMA	50	110	44.4
3310 DNRCBM	50	110	44.4
3311 DMA	55	120	49.2
3311 DNRCBM	55	120	49.2
3313 DNRCBM	65	140	58.7
305256 D	120	190	66
305283 D	150	230	70
305283 DA	150	230	70
305286 D	150	225	73
305608	160	215	56
305608 B	160	215	56
305262 D	180	259.5	66
305288 DA	180	250	70
305338 D	190	269.5	66
305263 D	200	289.5	76
305263 DA	200	289.5	76
305428 D	200	279.5	76
305272 D	220	309.5	76
305272 DA	220	309.5	76
305272 DB	220	309.5	76
305264 D	230	329.5	80
305270 D	260	369.5	92
305269 D	280	389.5	92
